gridpack::powerflow::PFBus Class Reference

#include <pf_components.hpp>

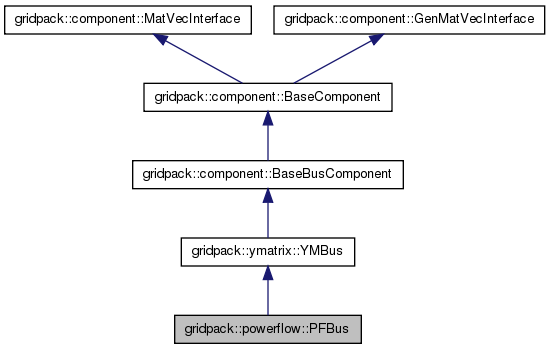

Inheritance diagram for gridpack::powerflow::PFBus:

[legend]

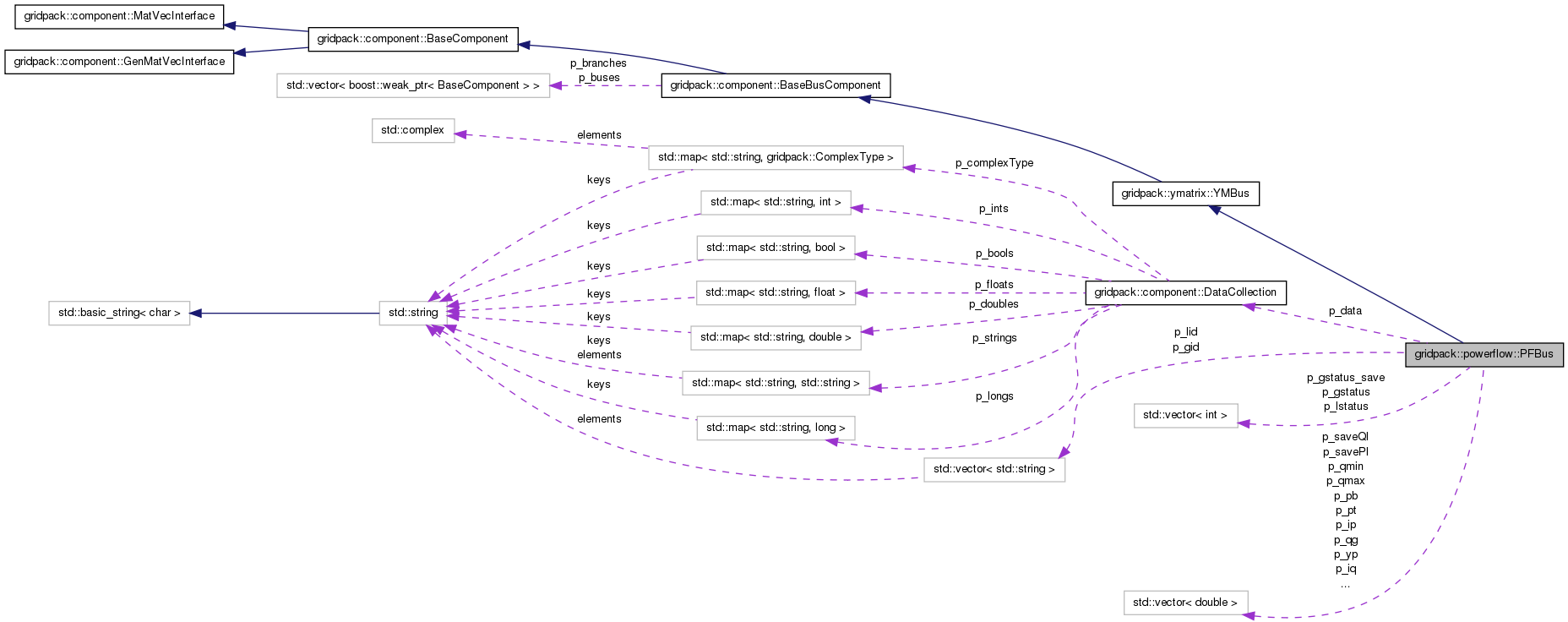

Collaboration diagram for gridpack::powerflow::PFBus:

[legend]

List of all members.

Public Member Functions
	PFBus (void)
	~PFBus (void)
bool	matrixDiagSize (int *isize, int *jsize) const
bool	matrixDiagValues (ComplexType *values)
bool	matrixDiagValues (RealType *values)
bool	vectorSize (int *isize) const
bool	vectorValues (ComplexType *values)
bool	vectorValues (RealType *values)
void	setValues (gridpack::ComplexType *values)
void	setValues (gridpack::RealType *values)
int	getXCBufSize (void)
void	setXCBuf (void *buf)
void	setYBus (void)
gridpack::ComplexType	getYBus (void)
void	load (const boost::shared_ptr< gridpack::component::DataCollection > &data)
void	setMode (int mode)
void	resetVoltage (void)
void	setVoltageLimits (double vmin, double vmax)
bool	checkVoltageViolation (void)
double	getVoltage (void)
ComplexType	getComplexVoltage (void)
double	getPhase (void)
bool	getGenStatus (std::string gen_id)
std::vector< std::string >	getGenerators ()
std::vector< std::string >	getLoads ()
bool	isPV (void)
void	setVoltage (void)
void	setPhase (void)
void	setGenStatus (std::string gen_id, bool status)
void	setIsPV (int status)
void	resetIsPV ()
void	setSBus (void)
bool	serialWrite (char *string, const int bufsize, const char *signal=NULL)
bool	chkQlim (void)
void	clearQlim ()
void	saveData (boost::shared_ptr< gridpack::component::DataCollection > data)
void	setParam (std::string name, int busID, std::string genID, double value)
void	setParam (int busID, std::string genID, double value)
void	getParam (std::string &name, double *value, int idx)
void	getParam (std::string &name, int *value, int idx)
int	getElementIndex (std::string &name, std::string &tag)
void	setIgnore (bool flag)
bool	getIgnore ()
int	getArea ()
int	getZone ()
int	diagonalJacobianValues (double *rvals)
int	rhsValues (double *rvals)
void	pushIsPV ()
std::vector< double >	getGeneratorParticipation ()
void	setGeneratorRealPower (std::string tag, double value, gridpack::component::DataCollection *data)
void	scaleGeneratorRealPower (std::string tag, double value)
void	setLoadRealPower (std::string tag, double value, gridpack::component::DataCollection *data)
void	scaleLoadPower (std::string tag, double value)
void	resetPower ()
void	getGeneratorMargins (std::vector< std::string > &tag, std::vector< double > &current, std::vector< double > &pmin, std::vector< double > &pmax, std::vector< int > &status)
void	getLoadPower (std::vector< std::string > &tag, std::vector< double > &pl, std::vector< double > &ql, std::vector< int > &status)
void	setSource (bool flag)
void	setSink (bool flag)
void	setScale (double scale)

---

Constructor & Destructor Documentation

gridpack::powerflow::PFBus::PFBus

(

void

)

Simple constructor

gridpack::powerflow::PFBus::~PFBus

(

void

)

Simple destructor

---

Member Function Documentation

bool gridpack::powerflow::PFBus::checkVoltageViolation

(

void

)

Check voltage for violation

Returns:

false if there is a voltage violation

bool gridpack::powerflow::PFBus::chkQlim

(

void

)

chkQlim check QLIM violations

void gridpack::powerflow::PFBus::clearQlim

(

)

Clear changes that were made for Q limit violations and reset bus to its original state

int gridpack::powerflow::PFBus::diagonalJacobianValues

(

double *

rvals

)

Evaluate diagonal block of Jacobian for power flow calculation and return result as an array of real values

Parameters:

rvals

values of Jacobian block

Returns:

number of values returned

int gridpack::powerflow::PFBus::getArea

(

)

Get area parameter for bus

Returns:

bus area index

ComplexType gridpack::powerflow::PFBus::getComplexVoltage

(

void

)

Return the complex voltage on this bus

Returns:

the complex voltage

int gridpack::powerflow::PFBus::getElementIndex	(	std::string &	name,
		std::string &	tag
	)

Get index of internal bus element based on character string identifier

Parameters:

	name	character string describing element
	tag	character string specifying bus element

Returns:

index of element

void gridpack::powerflow::PFBus::getGeneratorMargins	(	std::vector< std::string > &	tag,
		std::vector< double > &	current,
		std::vector< double > &	pmin,
		std::vector< double > &	pmax,
		std::vector< int > &	status
	)

Get available margin for generator

Parameters:

	tag	character ID for generator
	current	initial generation
	pmin	minimum allowable generation
	pmax	maximum allowable generation
	status	current status of generator

std::vector<double> gridpack::powerflow::PFBus::getGeneratorParticipation

(

)

Get vector containing generator participation

Returns:

vector of generator participation factors

std::vector<std::string> gridpack::powerflow::PFBus::getGenerators

(

)

Get list of generator IDs

Returns:

vector of generator IDs

bool gridpack::powerflow::PFBus::getGenStatus

(

std::string

gen_id

)

Get generator status

Parameters:

gen_id

generator ID

Returns:

current status of generator

bool gridpack::powerflow::PFBus::getIgnore

(

)

Get parameter to ignore voltage violations

Returns:

value of ignore parameter

void gridpack::powerflow::PFBus::getLoadPower	(	std::vector< std::string > &	tag,
		std::vector< double > &	pl,
		std::vector< double > &	ql,
		std::vector< int > &	status
	)

Get current value of loads

Parameters:

	tag	character ID for load
	pl	initial value of load real power
	ql	initial value of load reactive power
	status	current status of load

std::vector<std::string> gridpack::powerflow::PFBus::getLoads

(

)

Get list of load IDs

Returns:

vector of load IDs

void gridpack::powerflow::PFBus::getParam	(	std::string &	name,
		int *	value,
		int	idx
	)

void gridpack::powerflow::PFBus::getParam	(	std::string &	name,
		double *	value,
		int	idx
	)

Access parameters inside the bus module. This is designed to be extensible

Parameters:

	name	character string describing parameter to be accessed
	value	value of parameter
	idx	index (if necessary) of variable to be accessed

double gridpack::powerflow::PFBus::getPhase

(

void

)

Return the value of the phase angle on this bus

Returns:

: phase angle

double gridpack::powerflow::PFBus::getVoltage

(

void

)

Return the value of the voltage magnitude on this bus

Returns:

voltage magnitude

int gridpack::powerflow::PFBus::getXCBufSize

(

void

)

[virtual]

Return the size of the buffer used in data exchanges on the network. For this problem, the voltage magnitude and phase angle need to be exchanged

Returns:

size of buffer

Reimplemented from gridpack::component::BaseComponent.

gridpack::ComplexType gridpack::powerflow::PFBus::getYBus

(

void

)

Get values of YBus matrix. These can then be used in subsequent calculations

Reimplemented from gridpack::ymatrix::YMBus.

int gridpack::powerflow::PFBus::getZone

(

)

Get zone parameter for bus

Returns:

bus zone index

bool gridpack::powerflow::PFBus::isPV

(

void

)

Return whether or not the bus is a PV bus (V held fixed in powerflow equations)

Returns:

true if bus is PV bus

void gridpack::powerflow::PFBus::load

(

const boost::shared_ptr< gridpack::component::DataCollection > &

data

)

[virtual]

Load values stored in DataCollection object into PFBus object. The DataCollection object will have been filled when the network was created from an external configuration file

Parameters:

data,:

DataCollection object contain parameters relevant to this bus that were read in when network was initialized

Reimplemented from gridpack::ymatrix::YMBus.

bool gridpack::powerflow::PFBus::matrixDiagSize	(	int *	isize,
		int *	jsize
	)			const [virtual]

Return size of matrix block on the diagonal contributed by component

Parameters:

isize,jsize,:

number of rows and columns of matrix block

Returns:

: false if network component does not contribute matrix element

Reimplemented from gridpack::ymatrix::YMBus.

bool gridpack::powerflow::PFBus::matrixDiagValues

(

RealType *

values

)

[virtual]

Reimplemented from gridpack::component::MatVecInterface.

bool gridpack::powerflow::PFBus::matrixDiagValues

(

ComplexType *

values

)

[virtual]

Return the values of for a diagonal matrix block. The values are returned in row-major order

Parameters:

values,:

pointer to matrix block values

Returns:

: false if network component does not contribute matrix element

Reimplemented from gridpack::ymatrix::YMBus.

void gridpack::powerflow::PFBus::pushIsPV

(

)

Push p_isPV values from exchange buffer to p_isPV variable

void gridpack::powerflow::PFBus::resetIsPV

(

)

Reset isPV status

void gridpack::powerflow::PFBus::resetPower

(

)

Reset power for generators and loads back to original values

void gridpack::powerflow::PFBus::resetVoltage

(

void

)

Reset voltage and phase angle to initial values

int gridpack::powerflow::PFBus::rhsValues

(

double *

rvals

)

Evaluate RHS values for powerflow equation and return result as an array of real values

Parameters:

rvals

values of Jacobian block

Returns:

number of values returned

void gridpack::powerflow::PFBus::saveData

(

boost::shared_ptr< gridpack::component::DataCollection >

data

)

[virtual]

Save state variables inside the component to a DataCollection object. This can be used as a way of moving data in a way that is useful for creating output or for copying state data from one network to another.

Parameters:

data

data collection object into which new values are inserted

Reimplemented from gridpack::component::BaseComponent.

void gridpack::powerflow::PFBus::scaleGeneratorRealPower	(	std::string	tag,
		double	value
	)

Scale value of real power on all generators

Parameters:

	character	ID for generator
	value	scale factor for real power

void gridpack::powerflow::PFBus::scaleLoadPower	(	std::string	tag,
		double	value
	)

Scale value of real and reactive power on loads

Parameters:

	character	ID for load
	value	scale factor for real power

bool gridpack::powerflow::PFBus::serialWrite	(	char *	string,
		const int	bufsize,
		const char *	signal = NULL
	)			[virtual]

Update pg of specified bus element based on their genID

Parameters:

	busID
	genID
	value	Write output from buses to standard out
	string	(output) string with information to be printed out
	signal	an optional character string to signal to this
	bufsize	size of string buffer in bytes routine what about kind of information to write

Returns:

true if bus is contributing string to output, false otherwise

Reimplemented from gridpack::component::BaseComponent.

void gridpack::powerflow::PFBus::setGeneratorRealPower	(	std::string	tag,
		double	value,
		gridpack::component::DataCollection *	data
	)

Set value of real power on individual generators

Parameters:

	tag	generator ID
	value	new value of generator real power
	data	data collection object associated with bus

void gridpack::powerflow::PFBus::setGenStatus	(	std::string	gen_id,
		bool	status
	)

Set generator status

Parameters:

	gen_id	generator ID
	status	generator status

void gridpack::powerflow::PFBus::setIgnore

(

bool

flag

)

Set parameter to ignore voltage violations

Parameters:

flag

value of ignore parameter

void gridpack::powerflow::PFBus::setIsPV

(

int

status

)

Set isPV status

Parameters:

status

isPV status

void gridpack::powerflow::PFBus::setLoadRealPower	(	std::string	tag,
		double	value,
		gridpack::component::DataCollection *	data
	)

Set value of real power on individual loads

Parameters:

	tag	load ID
	value	new value of load real power
	data	data collection object associated with bus

void gridpack::powerflow::PFBus::setMode

(

int

mode

)

[virtual]

Set the mode to control what matrices and vectors are built when using the mapper

Parameters:

mode,:

enumerated constant for different modes

Reimplemented from gridpack::ymatrix::YMBus.

void gridpack::powerflow::PFBus::setParam	(	int	busID,
		std::string	genID,
		double	value
	)

void gridpack::powerflow::PFBus::setParam	(	std::string	name,
		int	busID,
		std::string	genID,
		double	value
	)

Modify parameters inside the bus module. This is designed to be extensible

Parameters:

	name	character string describing parameter to be modified
	value	new value of parameter
	idx	index (if necessary) of variable to be modified

void gridpack::powerflow::PFBus::setPhase

(

void

)

Set phase angle value

void gridpack::powerflow::PFBus::setSBus

(

void

)

setSBus BUS = (CG*(GEN(ON,PG) + J*GEN(ON,QG)-(PD+J*QD))/BASEMVA

void gridpack::powerflow::PFBus::setScale

(

double

scale

)

Store scale factor

Parameters:

scale

factor for scaling generation or loads

void gridpack::powerflow::PFBus::setSink

(

bool

flag

)

Label bus as a sink for real time path rating

Parameters:

flag

identify bus as sink

void gridpack::powerflow::PFBus::setSource

(

bool

flag

)

Label bus as a source for real time path rating

Parameters:

flag

identify bus as source

void gridpack::powerflow::PFBus::setValues

(

gridpack::RealType *

values

)

[virtual]

Reimplemented from gridpack::component::MatVecInterface.

void gridpack::powerflow::PFBus::setValues

(

gridpack::ComplexType *

values

)

[virtual]

Set the internal values of the voltage magnitude and phase angle. Need this function to push values from vectors back onto buses

Parameters:

values

array containing voltage magnitude and angle

Reimplemented from gridpack::component::MatVecInterface.

void gridpack::powerflow::PFBus::setVoltage

(

void

)

Set voltage value

void gridpack::powerflow::PFBus::setVoltageLimits	(	double	vmin,
		double	vmax
	)

Set voltage limits on bus

Parameters:

	vmin	lower value of voltage
	vmax	upper value of voltage

void gridpack::powerflow::PFBus::setXCBuf

(

void *

buf

)

[virtual]

Assign pointers for voltage magnitude and phase angle

Reimplemented from gridpack::component::BaseComponent.

void gridpack::powerflow::PFBus::setYBus

(

void

)

Set values of YBus matrix. These can then be used in subsequent calculations

Reimplemented from gridpack::ymatrix::YMBus.

bool gridpack::powerflow::PFBus::vectorSize

(

int *

isize

)

const [virtual]

Return size of vector block contributed by component

Parameters:

isize,:

number of vector elements

Returns:

: false if network component does not contribute vector element

Reimplemented from gridpack::component::MatVecInterface.

bool gridpack::powerflow::PFBus::vectorValues

(

RealType *

values

)

[virtual]

Reimplemented from gridpack::component::MatVecInterface.

bool gridpack::powerflow::PFBus::vectorValues

(

ComplexType *

values

)

[virtual]

Return the values of the vector block

Parameters:

values,:

pointer to vector values

Returns:

: false if network component does not contribute vector element

Reimplemented from gridpack::component::MatVecInterface.

---

The documentation for this class was generated from the following file:

• pf_components.hpp
